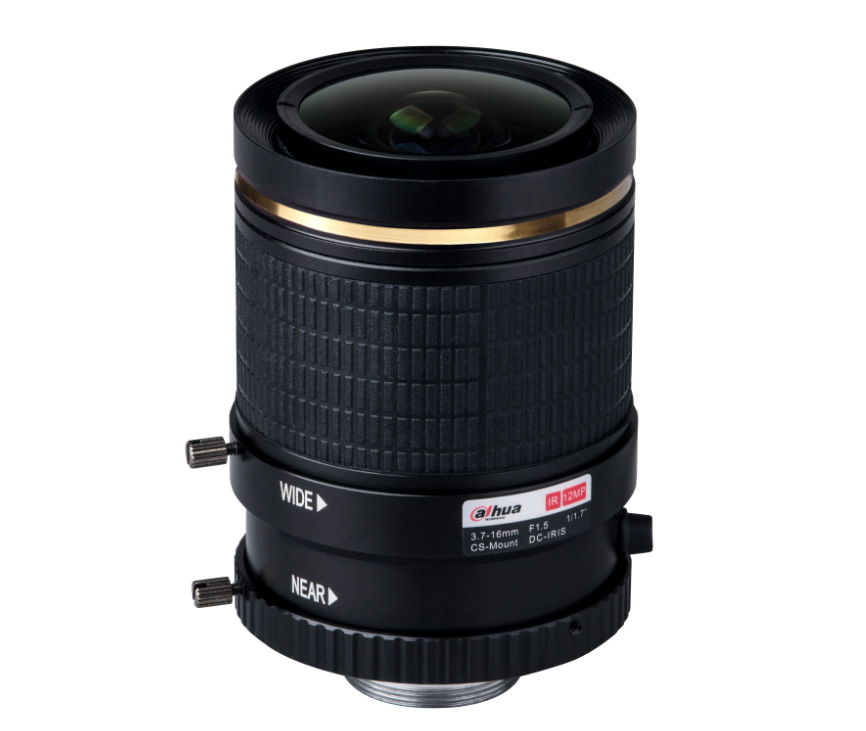

DH-PLD3716B3
12 MP 1/1.7” 3.7-16mm Vari-focal Lens
Technical Specification
| Parameter | |
| Model | DH-PLD3716B3 |
| Image Format | 1/1.7" |
| Focal Length | 3.7–16 mm |
| Lens Pixel | 12 MP |
| Aperture | F1.5 |
| Mount | CS |
| Field Angle (D*H*V) |
1/1.7" W: 145°(D) × 109°(H) × 79°(V) ~ T: 35.6°(D) × 28.5°(H) × 21.4°(V) |
| IR Correction | Yes |
| M.O.D. | 0.5 m (1.64 ft) |
| Dimension | Φ54 mm × 82.8 mm (Φ2.12" × 3.26") |
| Weight | 0.27 kg (0.6 lb) |
| Operating Temperature | −30 °C ~ +70 °C (−22 °F ~ +158 °F) |
| Humidity | <90% RH |
| Lens Control | |
| Focus | Manual |
| Zoom | Manual |
| Iris | DC-Iris |
| Certifications | |
| Certifications |
CE (EN55022, EN55024, EN50130-4) FCC (ANSI C63.4, FCC Part 15 Subpart B) |
Ordering Information
| Type | Part Number | Description |
| Lens | DH-PLD3716B3 | 12MP 1/1.7" 3.7-16mm vari-focal lens |
Package Information
- 12MP 1/1.7" 3.7-16mm vari-focal lens DH-PLD3716B3 × 1

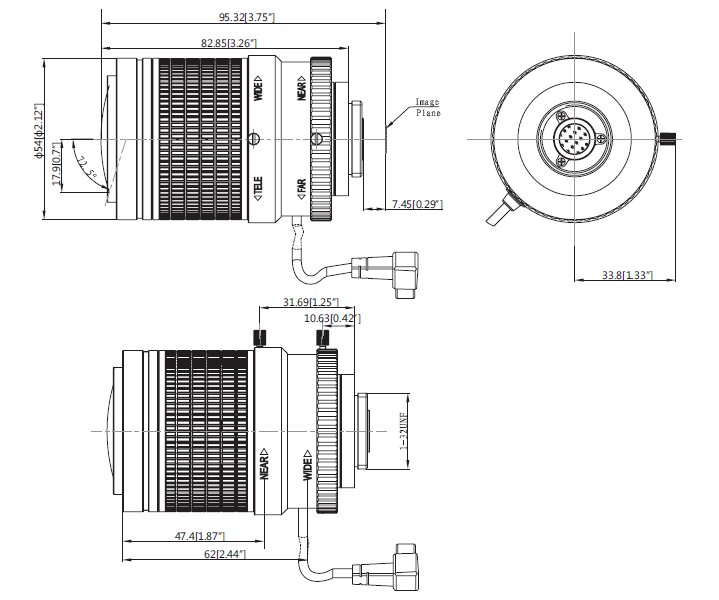

Dimensions (mm/inch)
